基于視覺檢測的膠合板表面缺陷修補設備的設計與實現

打開文本圖片集

中圖分類號：S777；TS64 文獻標識碼：A DOI：10.7525/j.issn.1006-8023.2025.04.020

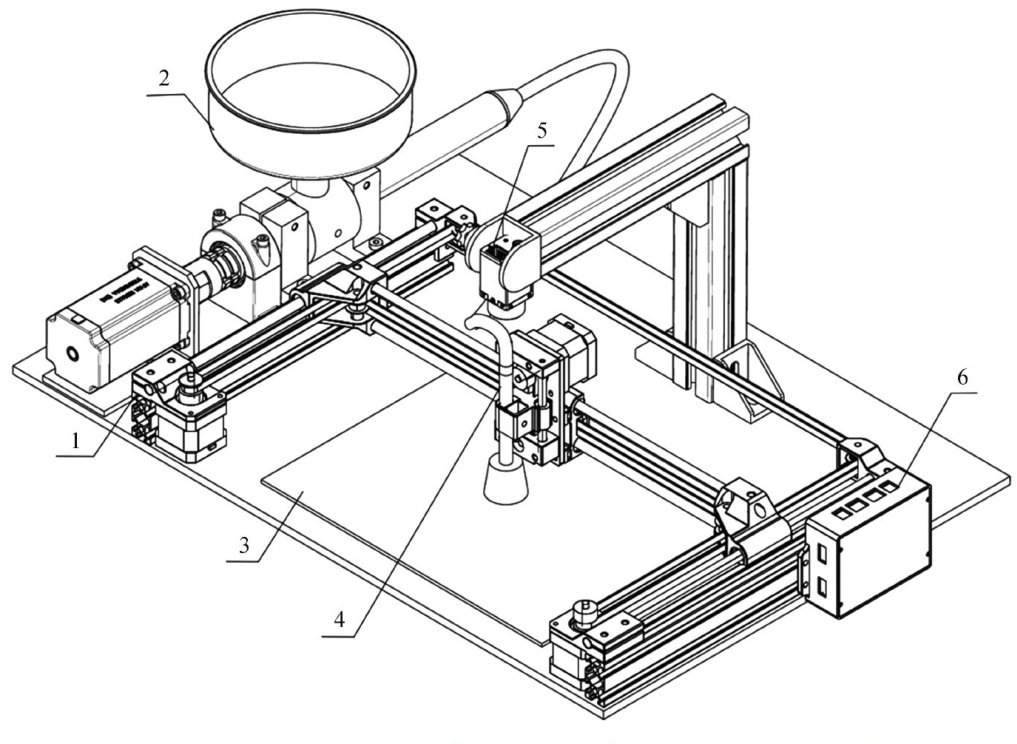

Abstract：To solvethe problemsoflow eficiency，highlaborintensity，andpoor working environment in plywood production，a surface defect repair equipment for plywood based on visualdetection and automation controltechnology to improve the surface qualityand production eficiencyof plywood wasdesigned.Theequipment mainlyincludeda visual detection and intellgent control system，a positioning system，an extrusion system，andarepairing mechanism.The visual detectionand intellgentcontrolsystem identifiedthesizeand positionof defects through visualdetection technologyand generated coresponding G-code instructions （the most widely used CNC programming language forcomputer numerical control machines），which were transmited to the positioning systemand extrusion system.The positioning system used the CoreXY mechanism（dual motordrive（Motors M1and M2），timing belt drive，X-shaped structure），andthe system received the instructions and controls therepairing mechanism to determine the defectrepair pointthrough thecoordination of M1，M2，and Z motors.The putyextrusion machineof the extrusion system was used to realize stable extrusion andevencoverage of theputtyatthedefectsite.The testshowed thatthe detection accuracyof theequipmentfor holes， cracks and other defects reached 97. 1% and 70.6% respectively，which can effectively cover the surface defects of the plywood andavoid large areas of coating.The repaired plywood issuperiorto manual repairin termsof putty residue， usage and repair time，providing an efective solution forthe automatic repairof the plywood processing industry.

Keywords： Plywood; surface defect repair; CoreXY mechanism;repair equipment；machine vision

0 引言

膠合板生產屬于木材深加工領域，通過旋切將原木加工成單板，隨后單板歷經干燥、拼接、涂膠、組壞、預壓、熱壓、膩補、裁邊以及砂光等一系列工藝，最終制造成板材[1-3]。（剩余13858字）
