基于聲發射信號多重分形特征的櫸木損傷斷裂過程

打開文本圖片集

中圖分類號：S781.2；S781.38 文獻標識碼：A DOI：10.7525/j.issn.1006-8023.2025.04.013

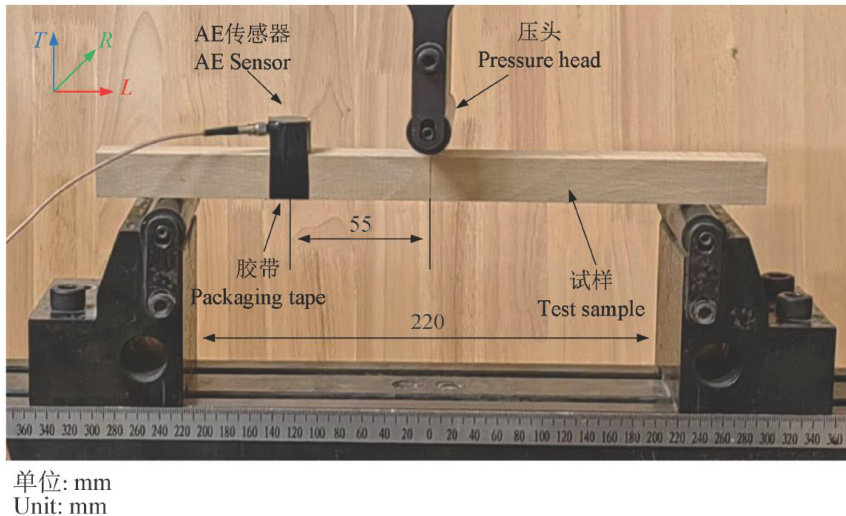

Abstract：Aiming at the acoustic emission （acoustic emission，AE）signals emitted from wood damage and fracture pro cess，multifractal detrended fluctuationanalysis（multifractaldetrendedfluctuationanalysis，MF-DFA）wasused toextractthecharacteristicparametersoftheAEsignals，andthentostudythefractalcharacteristicsofthe micro-and macrodamage behaviorsof wood.First，theAE signals generatedduring thethree-pointbending testof Zelkovaschneideriana specimen were collected.Then，the AE signal were intercepted bya sliding time windowand treated as a sequence of time periods. The generalized Hurst index，spectral width Δα ，singularity index αmax and αmax were calculated according to the MF-DFA method todescribe thelong-rangecorelationandtime-varying multifractal characteristicsof the AE signal.Finally，the whole process was categorized into elastic，elastoplastic and plastic stages based on the trend of Δα The results showedthattheAEsignalreleasedbythefracture processhadlong-rangecorrelationand its fluctuation was a multifractal process. And the value of αmax in the elastic stage was greatly reduced，which meant the multi-source charac teristics in the early stage of failure；the change of elastic-plastic stage αmax in a small range showed that the specimen hadacertain stiffess；the macroscopic fracture behaviorcan be predictedbythe time when the plastic stage αmin dropped suddenly.

Keywords：Wood；acoustic emission；multifractal；detrended fluctuation analysis

0 引言

木材作為一種具有多孔層狀結構的生物復合材料，其特殊的纖維結構使其容易產生復雜的斷裂機制和內部損傷，因此木質材料在長期使用過程中的安全監測是非常重要的。（剩余15378字）
