一種用雙層凹模補償U(kuò)形彎曲回彈的模具優化方案
打開文本圖片集
中圖分類號：TG241 文獻標志碼：B
A mold optimization scheme for compensating U-shaped bendingspringbackwithadouble-layer die
SHU Jiangjiao’ ，SHU Junping2，JING Longjian3， ZHAO Song2 ，YAN Qiufeng
（1. School of Electrical Engineering and Automation， Nantong University，Nantong Jiangsu 226O19，China; 2. Zhejiang YiLiDa Science And Technology Co. Ltd.，Taizhou ， China; 3. Songbo Electric（Shanghai） Co. Ltd.，Shanghai ，China）
Abstract： This study focuses on a distinctive motor support product. Through detailed process analysis，the development shape and forming force were calculated. The setting of critical dimensions leads to fluctuations in the size chain， particularly affecting high-side-wall U-shaped bending parts which are prone to springback. By employing upsetting pressure correction and side-pressure roof structures，the impact of springback is effectively mitigated. The innovative introduction of a doublelayer concave die，combined with gradual deformation，appropriate die material selection，and TD treatment， transitions the bending gap from large to normal until the final upsetting pressure correction. This approach cleverly alleviates complex deformations caused by bending of the reinforcing bar at the bottom of the connected side wall，thereby further controlling springback. Mass production verification has confirmed that this mold efectively addresses production challenges and provides innovative solutions for similar products. Key words： processability analysis； upsetting correction; side pressure ceiling； double-layer die；slow deformation
0 引言

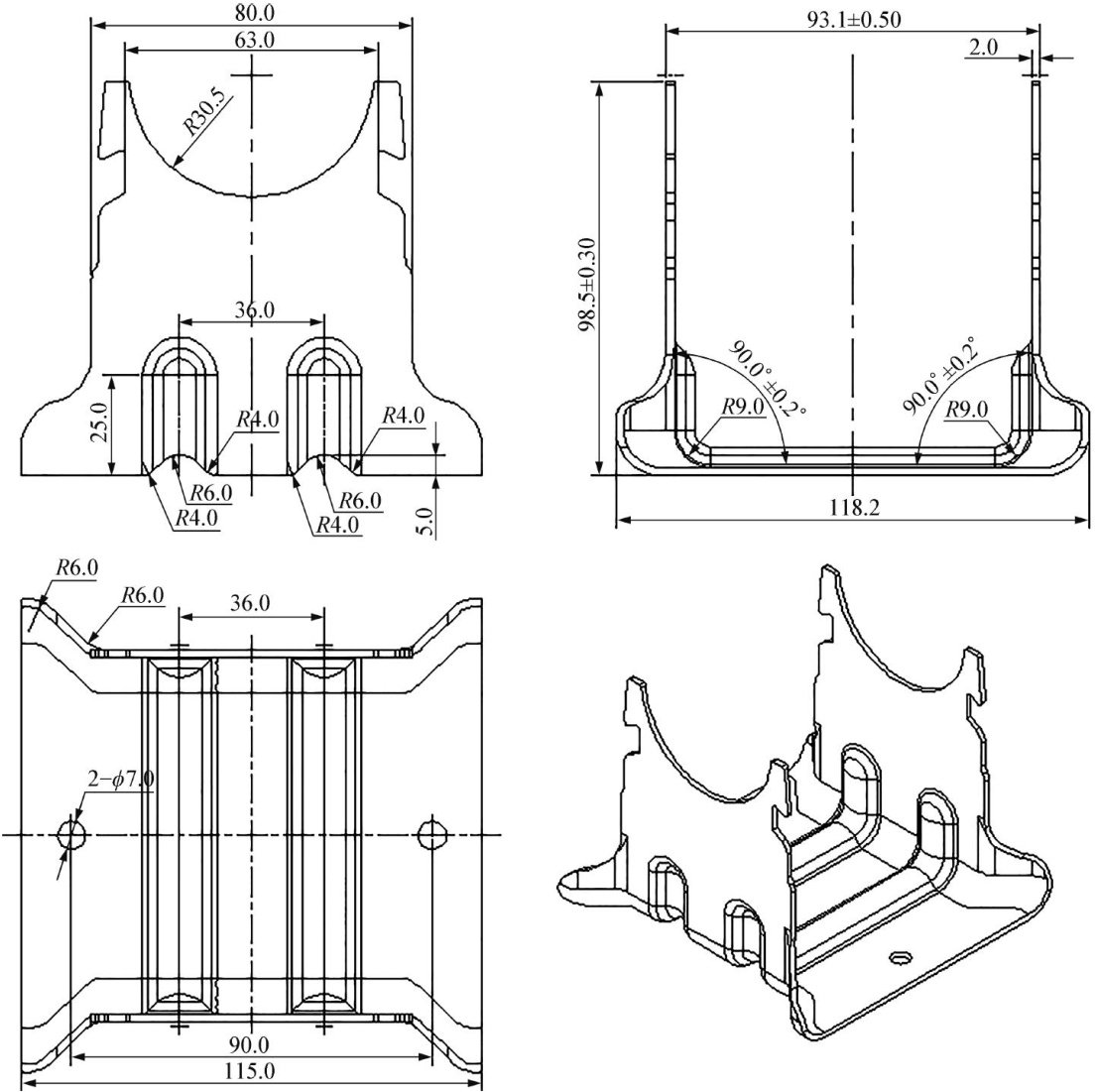

圖1是經多次試樣優化后的電機支架產品圖，材質為SPCC，材料厚度 T=2.0mm 。（剩余8362字）
