基于CFD-DEM的循環(huán)閥清潔器攜屑特性研究

打開文本圖片集

中圖分類號：FE242文獻標(biāo)識碼：A DOI：10.12473/CPM.202407035

Research on Cuttings Transport Performance of Circulating ValveCleanerBasedonCFD-DEM

Hu Wei1Guan Ning2 Zhang Yanping2Xu Binggui2Zhang JinyalZhu Hongwu1 （1.ColegeofMechncalndansportationngineeing，CinaUniesitofPetrole（Beijing）；.CNCEnineeingechol ogyR& D Company Limited）

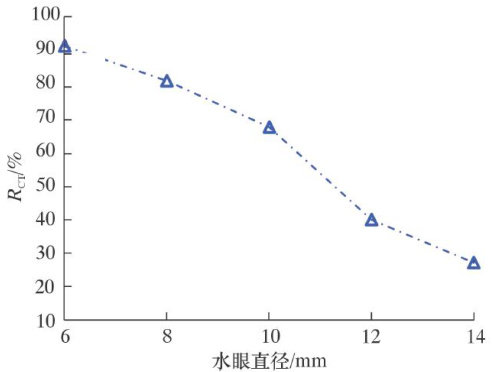

Abstract： In the processof drilling，inefficient drill cuttings transport may lead toan increase inannular cuttings concentration and equivalent circulating density（ECD），thereby causing some problems such as tool wear and lost circulation.To solve these problems，anew type of borehole annulus circulating valve cleaner was developed.Basedonthe H-B non-Newtonian fluid model，a numerical model for evaluating the cutings transport performance of multi-stage borehole annulus circulating valve cleaner was built by using the coupled CFD-DEM calculation method.The effctsof the number of nozzles，nozzle diameter，nozzleangle and drillpipe rotation speed on thecuttings transport performance of the circulating valve cleaner were analyzed.The results show that increasing thediameterandnumber ofnozles orraising the drillpipe rotation speed leads to an increase in theconcentration of cuttings in annulusanda significant decrease in the cutings transport ratio（CTR）.When the numberof nozzles is 3 and the nozzle diameter is 10mm ，the cuttings transport performance is the best. As the nozzle angle increases，the CTR value increases and then decreases. When the nozzle angle is 30° ， the CTR value is the highest，indicating the highest cutings transport efficiency.Invertical borehole，the rotationofthe circulating valve cleaner produces aswirling effect，whichmaycausethe spiral migrationof cutings，therebymaking cuttings retain longerinthe borehole to induceasignificantreductioninthecuttings transportefficiency.Thehighertherotational speed，the stronger the swirling effect，and the worse thecutings transport performane.Given the above optimal parameters，the borehole annulus flow rate increases by nearly 58% and the overall CTR increases by nearly 10% （20 after using the proposed circulating valve cleaner.The research conclusions are of great significance for improving the efficiency of annulus cuttings transport and ensuring efficient and safe oil and gas development.

Keywords： multi-stage borehole；circulating valve cleaner；cutings transport efficiency； CFD-DEM nozzle;drill pipe rotation speed

0 引言

在油氣鉆井過程中，鉆頭破碎巖石產(chǎn)生的大量巖屑需要被及時清理出井筒。（剩余11730字）
